About the project (constantly updated): quick up-to-date

In early 2017 I created the openSX70 closed group in Facebook.

Fire image

I wanted to replace the Apollo-era PCB “brain” on the SX70 Polaroid camera with a modern Arduino-based easy to program PCB. That would allow to add “manual control” to the camera and many more cool things.

Here is the FAQ/official press release pdf. All press materials in Github.

Fire image

It was not something that had not being done before, at least two commercial projects existed. But nothing existed as open source and arduino-based.

The project is open source for non commercial uses, under Creative Commons “Attribution-NonCommercial 4.0 International (CC BY-NC 4.0)” is free and open for hobbyist NON-COMMERCIAL USE.

My plan was that, it would create a “community effect” and that many people would volunteer to help, sharing their skills. Specially electronics, and coding. It has not really happened (yet!).

So I got all the Repair Manuals I could find on the camera, trying to understand how it works. Fortunately it is quite simple: a couple of switches mechanically activated, a motor, and two solenoids.

(basic camera operation in slow motion controlled by arduino)

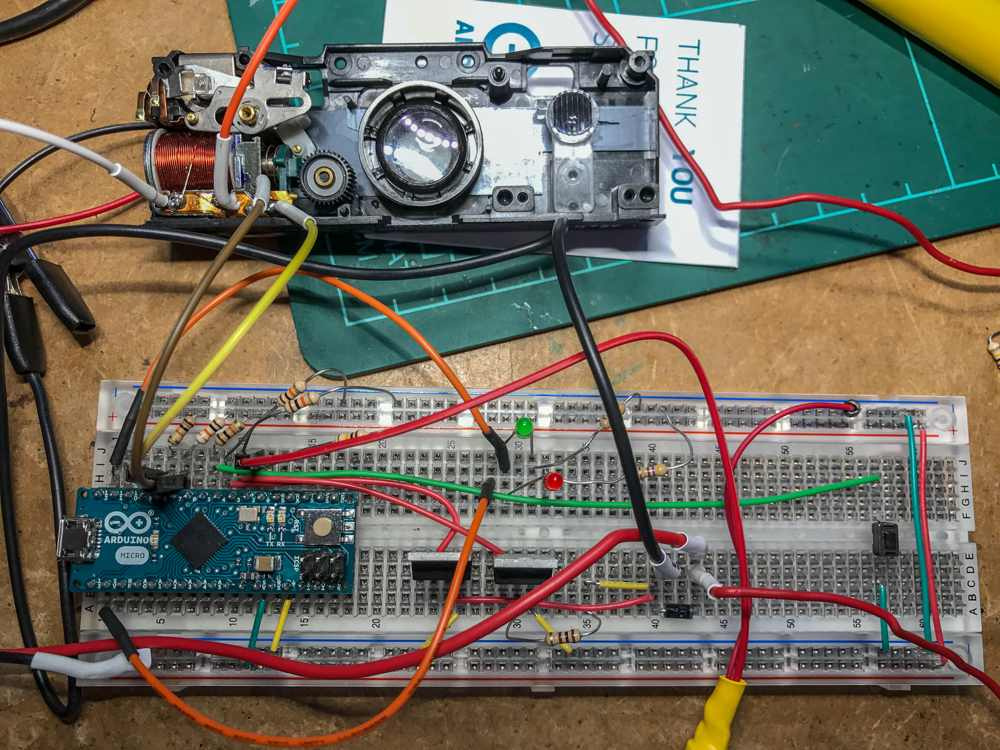

So from there I tried, using of the shelf components and arduino boards to “make” a camera. That first camera I knicknamed FrankenSX70

(simple shutter test)

Fire image

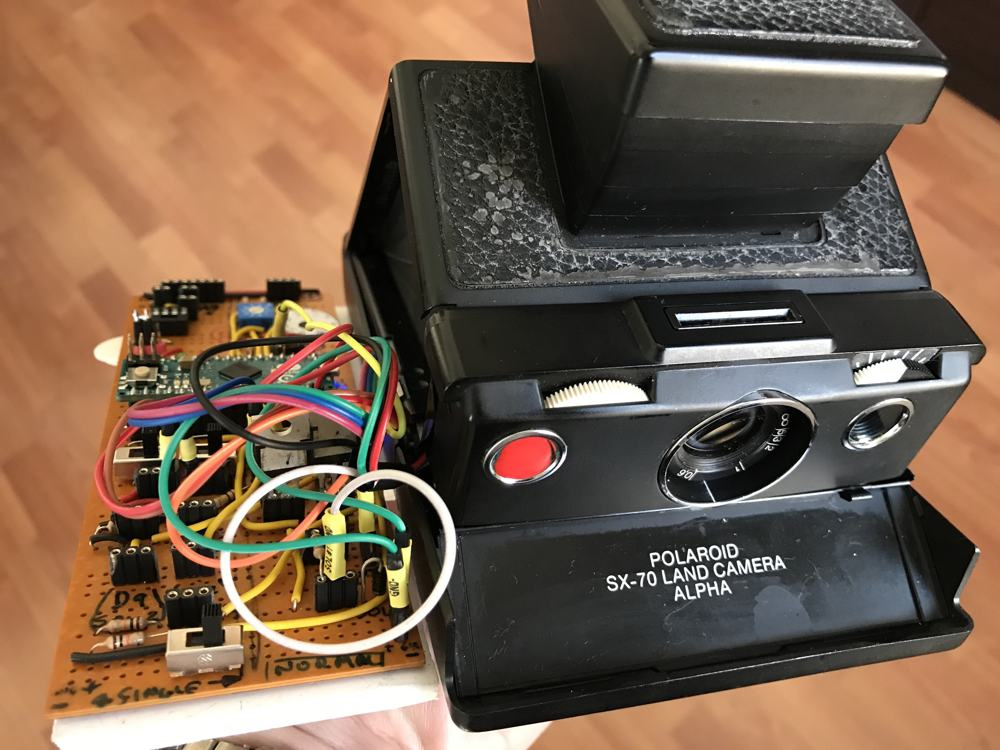

With that camera I was able to take my first picture & double exposures! Fire image

Fire image

So I figured I could design the board myself (How hard can it be?) So I started with the great Fritzing software

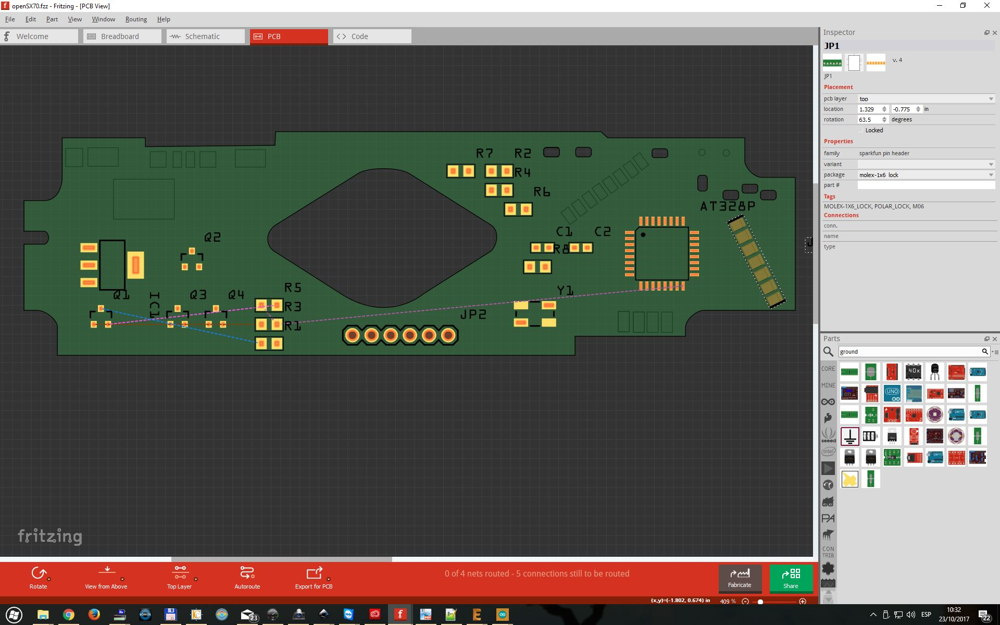

Fire image The openSX70 pcb as a work-in-progress in Fritzing.

But then I found out that the professional EAGLE CAD could be used free so a switch to it and kept with design. Keep in mind that I had never used EAGLE nor design a PCB, also that the openSX70 was not a simple “my first board design”:

  • custon outline that had to exactly fit in the camera

  • SMD components (where do I start?)

  • Very limited real state

For me, the initial openSX70 design would be a two part thing. The “main” PCB inside the camera. And the “control” dongle that you connected through the camera flash socket. The flash was a challenge: the way it was originally design to use the flashbars only three cables ran straigt from the PCB to the socket. So I had to:

  • be able to operate flashbars and electronic flash

  • control de “manual” options of the camera

  • fire an external flash via a PC-compatible socket

  • have a information LED

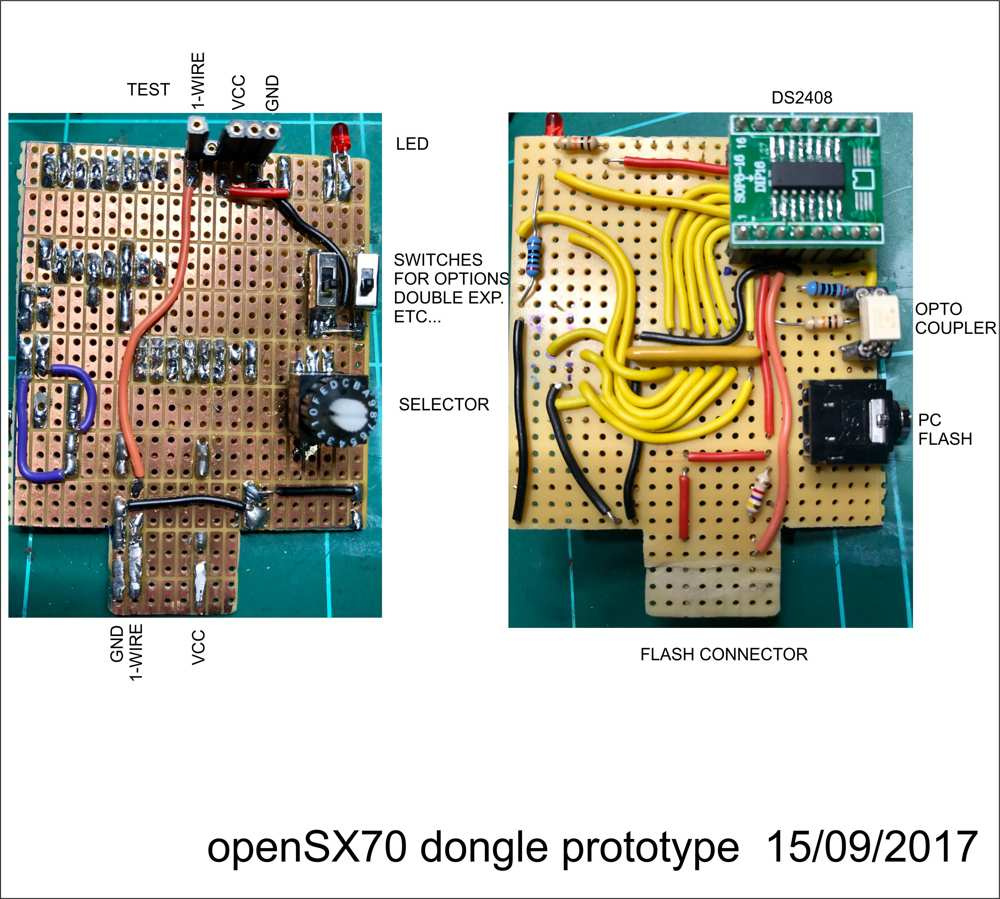

Fire image (Dongle prototype)

Fire image (early dongle PCB)

GitHub repository

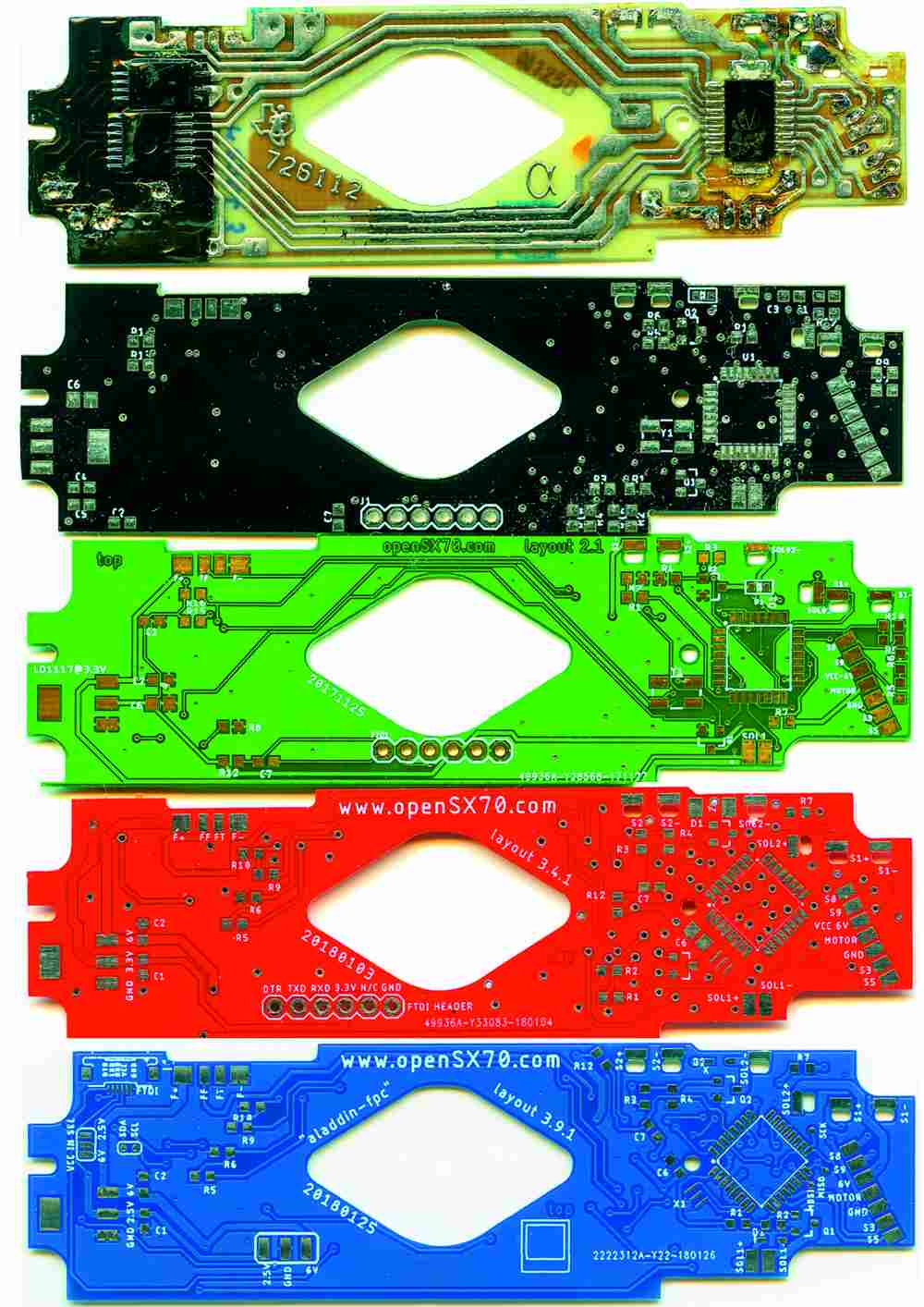

The central part of the project is the main SX70 PCB.

Fire image Fire image

GitHub repository

As of today the red main PCB “chocolate” is working although with some flaws. First I ran “Blink” to test the board as an arduino.

Then I tested the full camera operation

The board has both an “optinal” piezzo buzzer and a BH1750 light meter:

I started with a 3.3V regulator, to run the Atmega328p, initially at 16Mhz, then at 8mhz. Finally I run at 2.5V. The next generation board “Aladdin” and “Aladdin-FPC” are on the way this will hope will allow me to finally make my first working openSX70 camera! Aladin Gerber file

Full test of the Aladdin board:

The Aladdin Prototype #1 camera tests:

The new pre-industrial production 5.2 “Len’s and Bellow’s” PCB fully assembled prototype ready camera Prototype #2:

Fire image

After a mishap with the SEEEDFUSION PCBA service where they placed the BH1750 upside down I got a coupon from them to rebuild the boards. Nevertheless I have build a prototype (3.5) and it seems to work ok. Now I have designed a new board “Pathfinder”. I have corrected a few errors that I had detected in “Len’s & Bellows” particularly the BH1750 placement.

Fire image

The second try of the PCBA service from SeeedStudio was also a disaster, they replaced the mosfet for a part that did not work properly on the camera. Thankfully they refunded us.

The latest PCB design codenamed ALPHA uses a totally new component as a light sensor, the Osram SFH2430 photodiode. This will hopefully allow us to build the first openSX70 camera with AUTO exposure mode.

As an easter egg it has a dual led placed in a location that makes it visible in a sonar viewfinder.

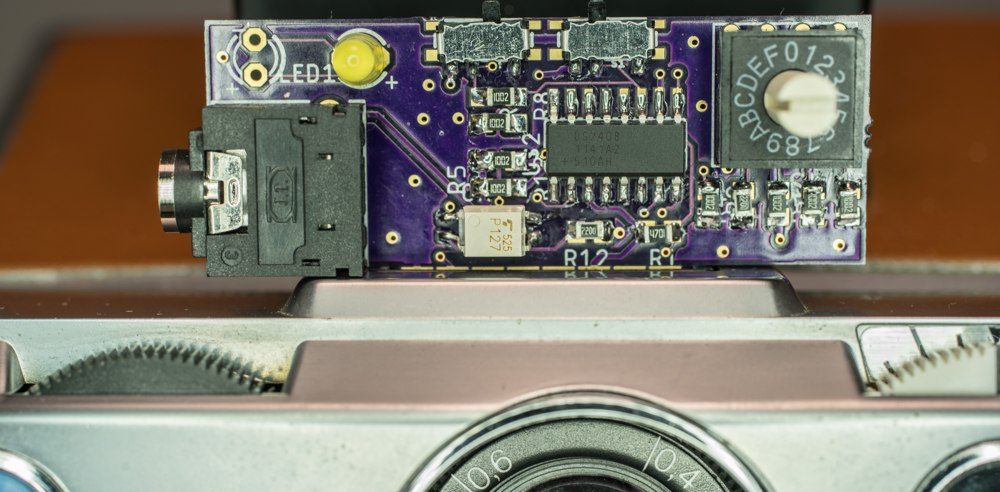

There are good news in the dongle industrial design, we have people like Jan de Paepe, he is a mechanical engineer that is working on projects for space, optics, robotics and injection moulding. He came up with the idea of the ultra-minimalistic dongle! This is his latest designs based on the origami You can download the origami 3D files. Fire image

Also the awesome Santi. He is the person behind AnalogueWorks.

Fire image

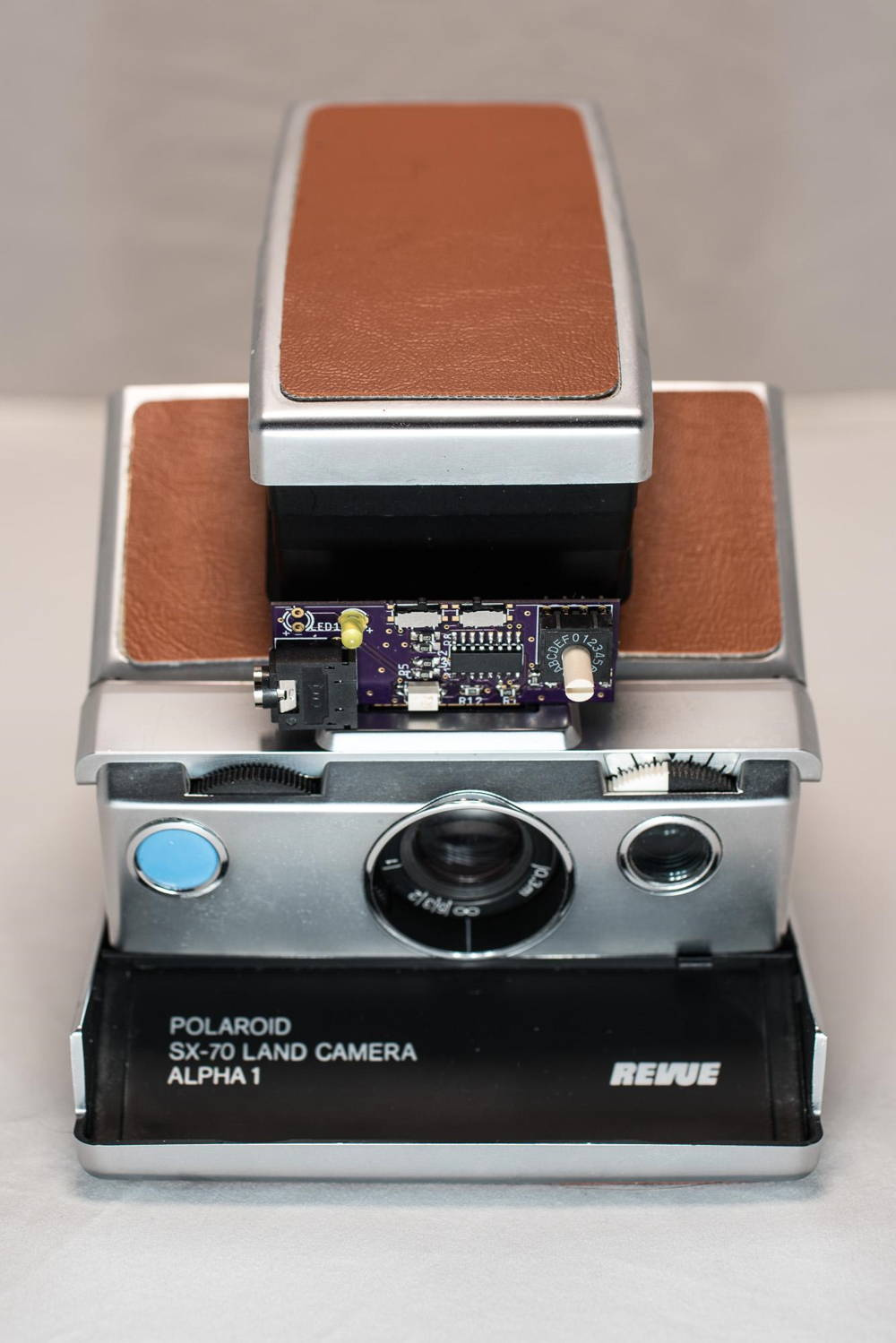

He has crafted this mock-ups:

Fire image

In early 2019 a beta program was started. Some quite talented people came into the project. With the help of the talented Dave Walker, one of the beta-testers, a electronics design engineer, we are beginning to take “AUTO” shots in both 600 and SX70 film.

This is by means of “reworked” PCBs using the TSL235 light to frequency chip. Please read the full post about the “magic number” and integration.

Fire image Fire image

And the results are encouraging.

Fire image Fire image
