Here we go again!

Fire image

I have a new board and camera prototype #2. This is my pre-production board since I intent to do a mini manufacturing run at SeeedFusion PCBA. This new board is more or less the same as Aladdin with a few cosmetic changes and an ICSP header.

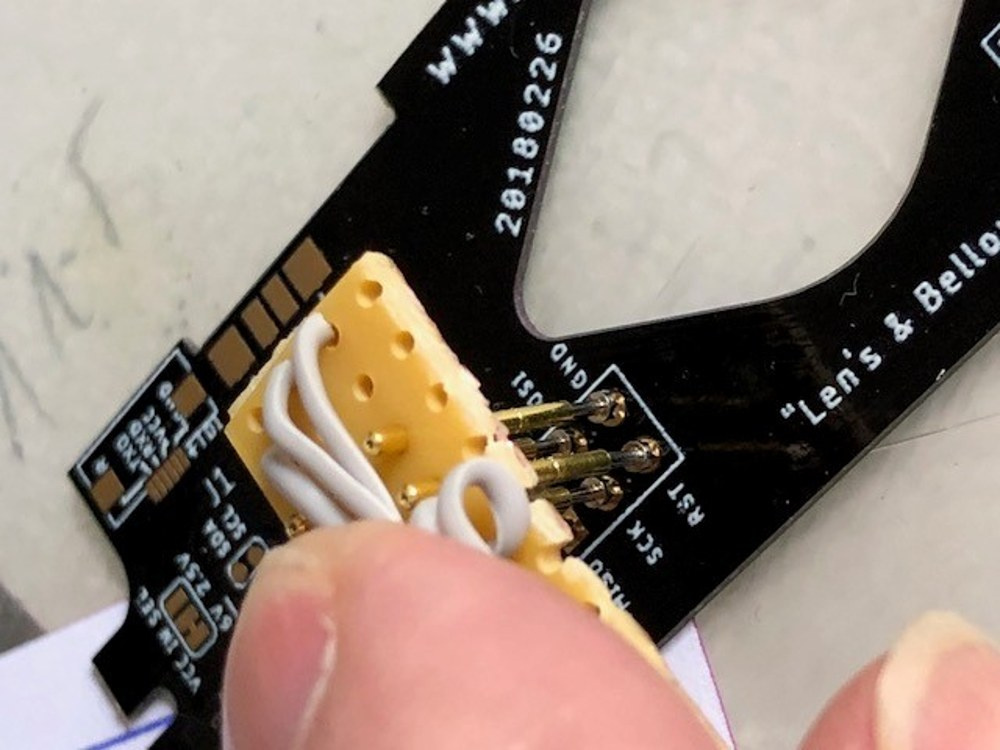

Now I normally use the FTDI USB connection to program the camera. But to do that I neew to have the bootloader on the Atmega328p chip. Since I am hand-building the boards I can easily do that with an adapter.

Fire image

But since I am going to do a small manufacture run at SeeedFusion of ten boards, I need another method of programming the chip ONCE it is on the board. Here comes in place the ICSP.

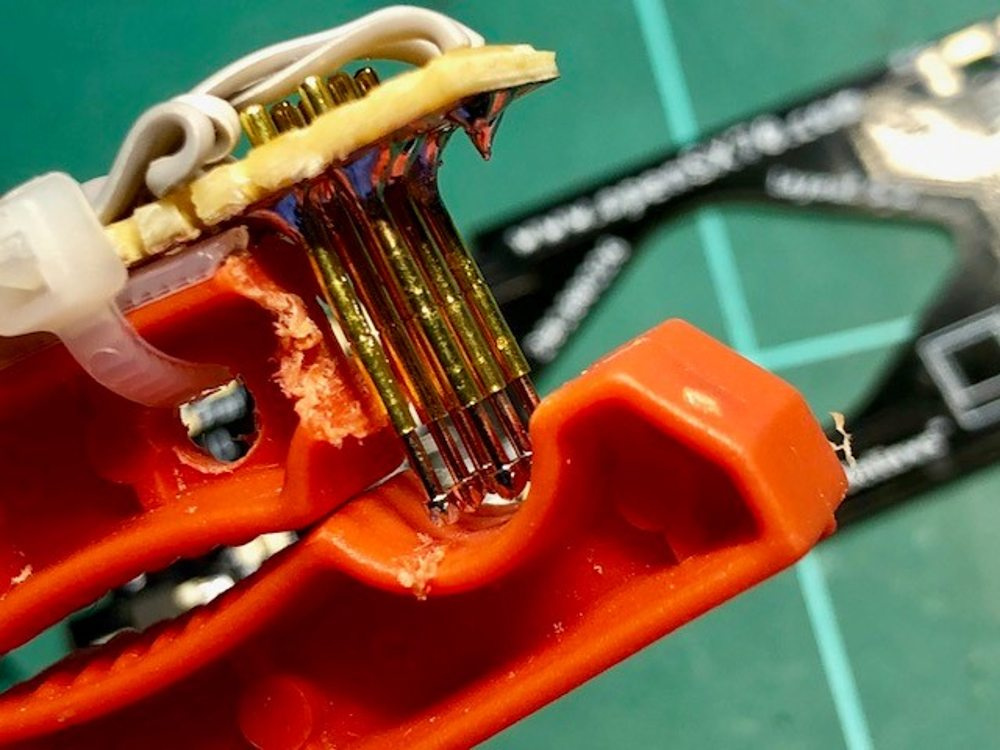

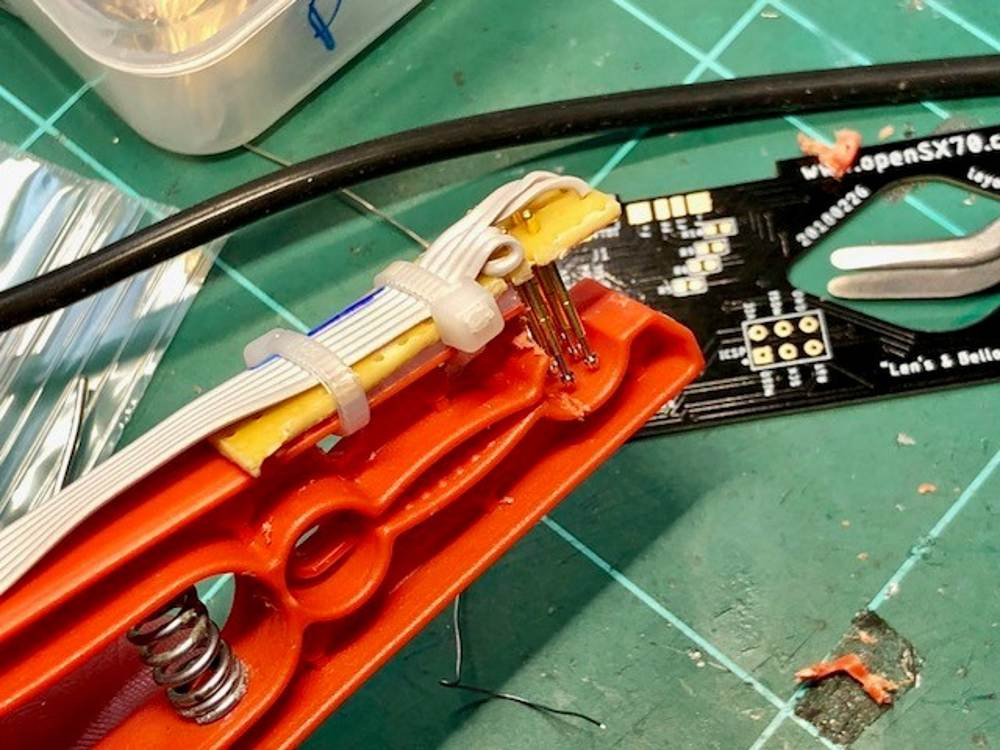

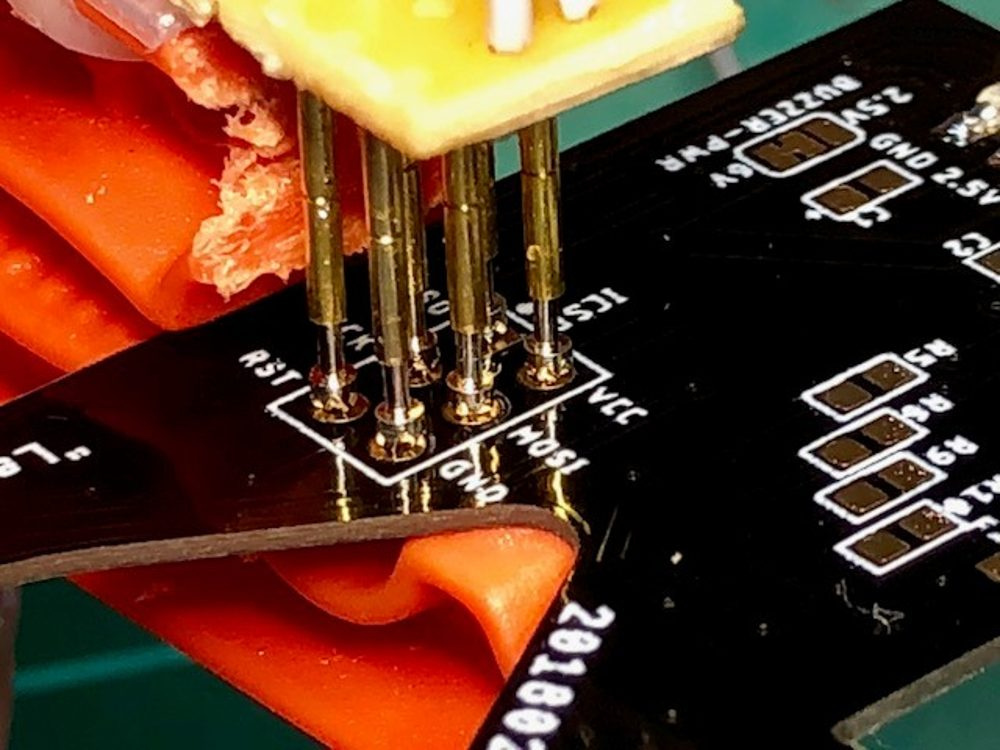

The ICSP needs a “proper” progammer to program the chip but I didn’t want to put more connectors on the boards. My ICSP header is not to solder the pins but to use an adapter I have made with pogo pins (they have a spring and compress). I build this into a regular clothes pin.

Fire image Fire image Fire image Fire image

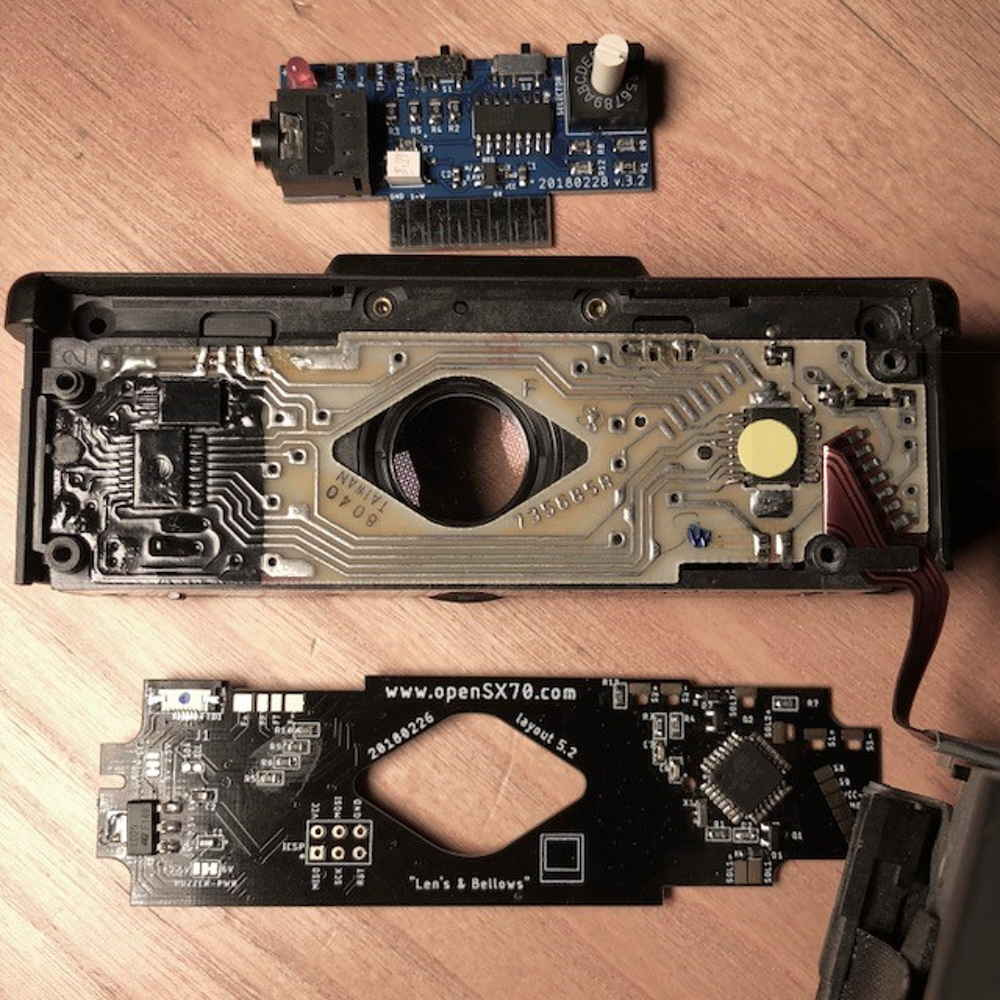

I have build prototype #2 out of an alpha camera with a hand build “Len’s & Bellows” PCB and everything seems to work fine.

Fire image

So today I ordered ten professionally manufactured boards from SeeedFusion. I will have them in 25 days aproximately.

I will hand-build a few UDs (Ugly Dongles) for the field tests.

Since I have never ever had a PCB board manufactured and assembled, this is going to be a long wait.
