My lightmeter struggle

Fire image

Most of you know my “struggle” so to speak with the light meter on the openSX70 camera. I chose to use the so-to-speak “advanced” BH1750, it as a very small chip that gives me via an i2C bus the value of light it “sees”. I had a bunch of problems with that, to mention a few, I misplaced it on the PCB, not exactly where the light “window” is, the chip has a .5mm pitch and is a bitch to hand solder for the prototypes, an when I manufactured a few board with SeeedFusion service they basically placed the sensor upside-down. But when all this was well, I still noticed two things: that the light reading were “faint” so to speak, that is because there is so much “stuff” in front of it, all the light dark filters, the lollypop lens, etc… and secondly and more crucial, the sensor for my purposes is too slow (yes, yes, milliseconds-range slow, but, slow).

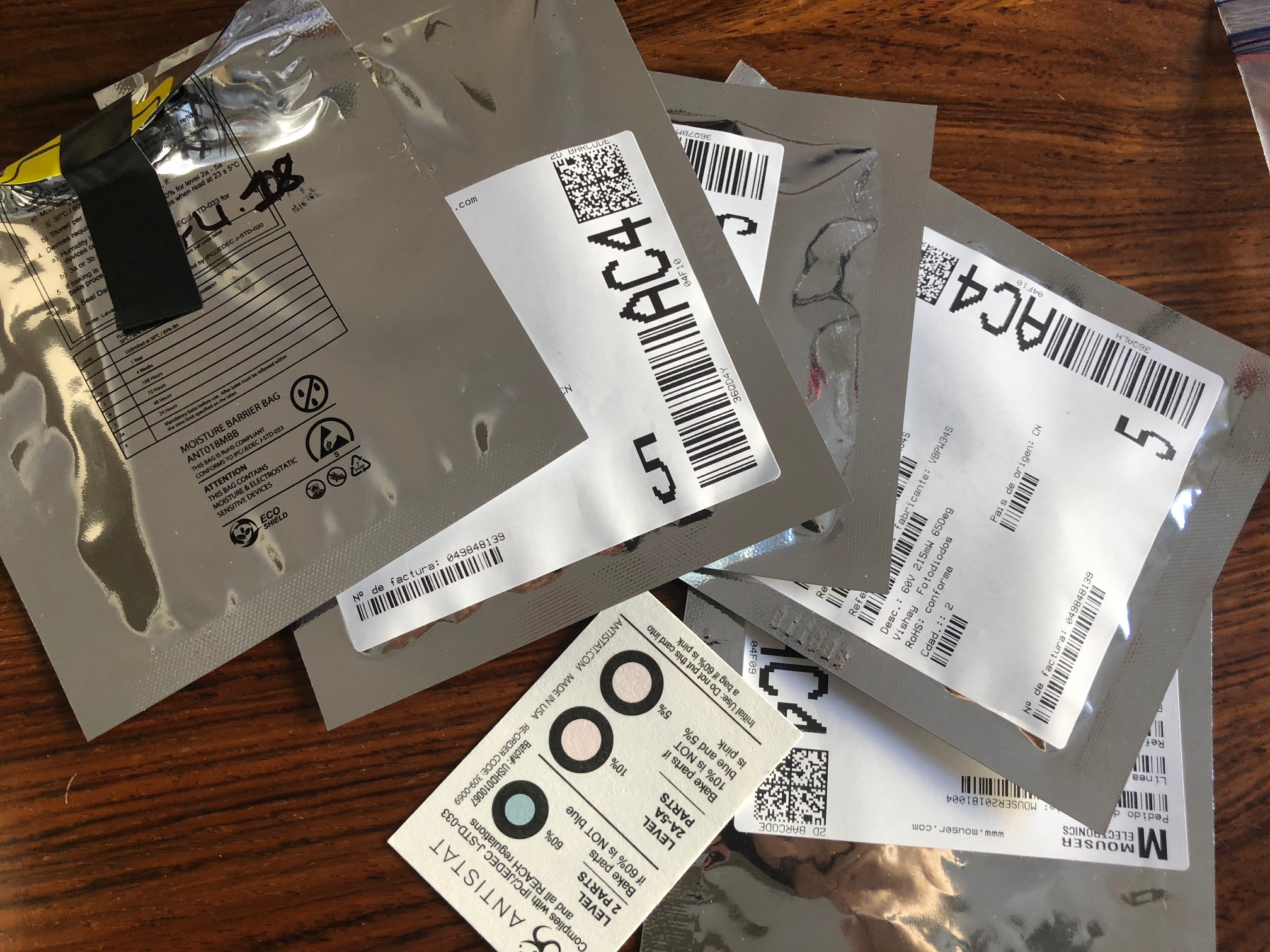

So I started the quest for a new sensor. This time I was looking for something that was totally analog, in the sense that gave me a value, relative to the amount of light, that was fast, but above all, I wanted something that had the sensor area of aproximately the same size as the one on the SX70 camera. And then I did what I usually do: buy a bunch of stuff that I don’t usually need, to run tests. So here you can see the bags from Mouser:

Fire image

These are a bunch of photodiodes, from Osram and Vishay, BPW 34-S-Z, SFH2440, VBP104SR, SFH2430.

In an interesting turn of events, I was reading Edwin H. Land’s Essays—Volune I and in an article by Dr. Land about one-step photography I found this:

In available light photography the system operates in the integrating mode, using as light sensor a tiny photodiode. The surface area of the photodiode is less than .006 inch^2 (4 mm^2), and it generates extremely small currents (10^-12 to 10^-9 amp). During exposure, light sensed by the photodiode generates a current which charges a capacitor to a predetermined level. When the capacitor reaches that level it discharges and its circuit instructs the solenoid to close the shutter blades, thus terminating the exposure. If the light level is too low to charge the capacitor sufficiently, the shutter is closed automatically after approximately 20 sec.

I was blown away…

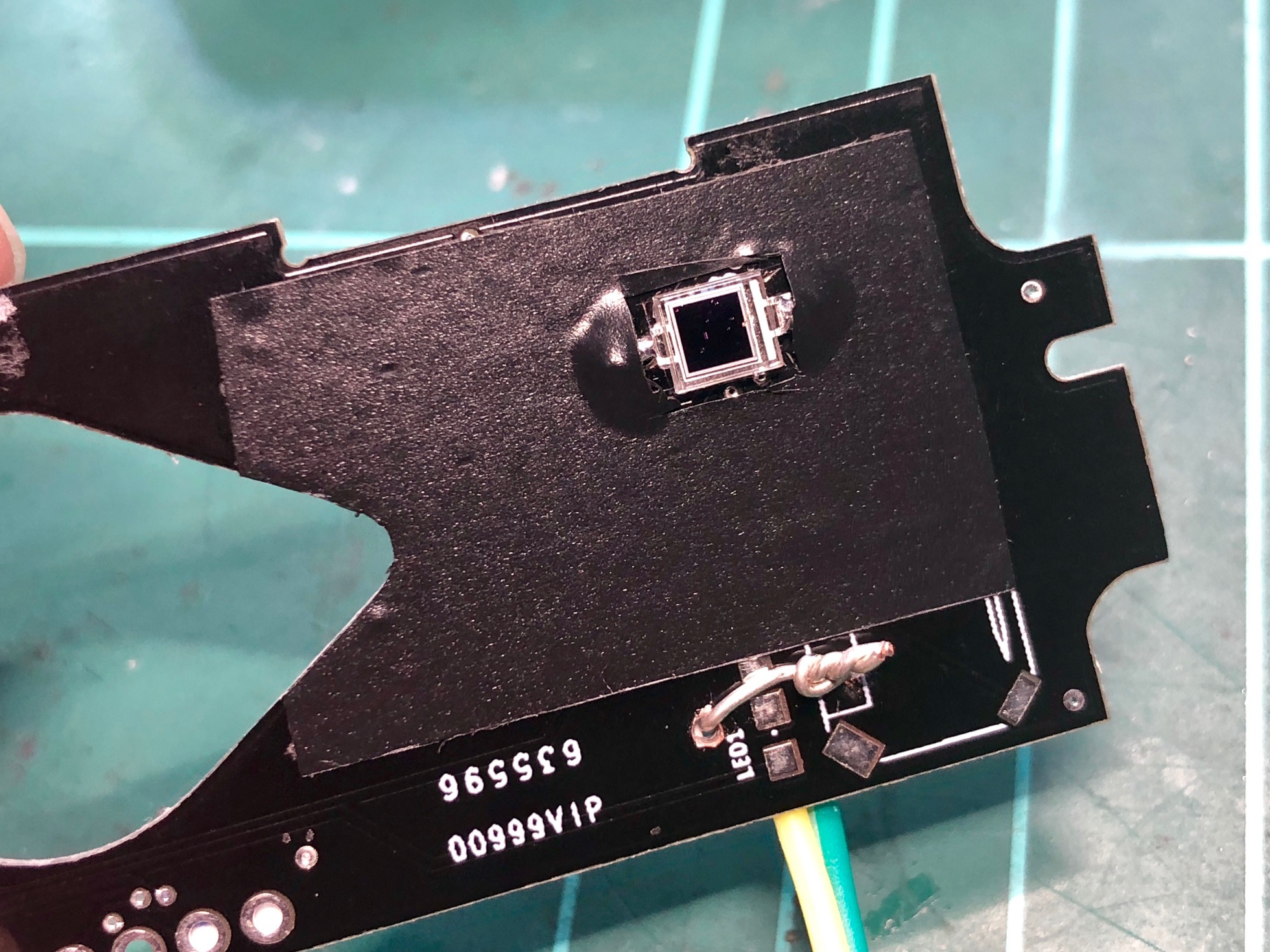

So I wanted to run the tests (quite franly, yet not very scientific) and I made it so I placed the photodiode (in this case SFH2430) more or less (hope it’s more than less) in the proper position in an discarded openSX70 PCB.

Fire image

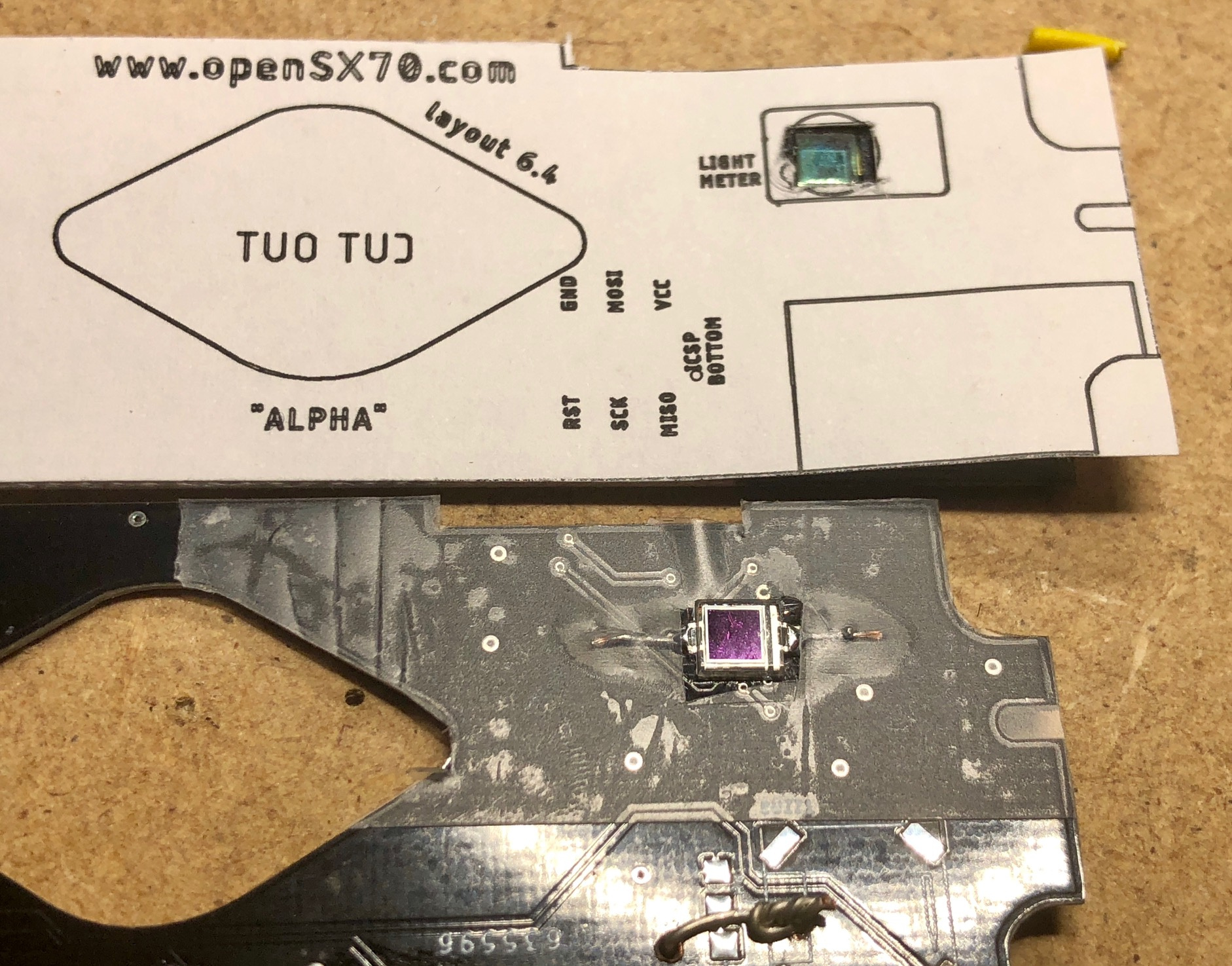

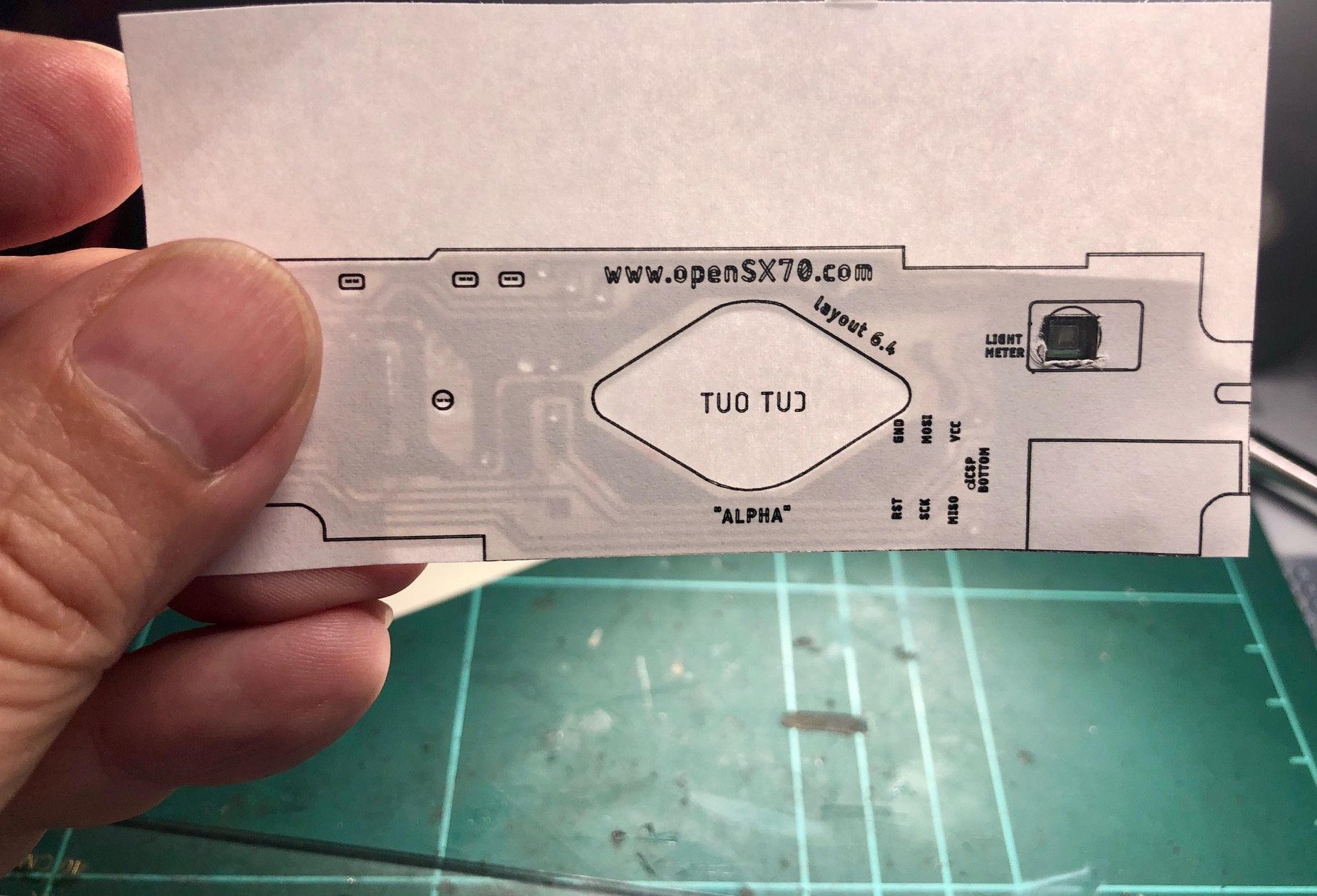

I wanted to make sure that the placement was spot-on, so I made a template, here you can see the template on top of an original PCB and the setup under.

Fire image

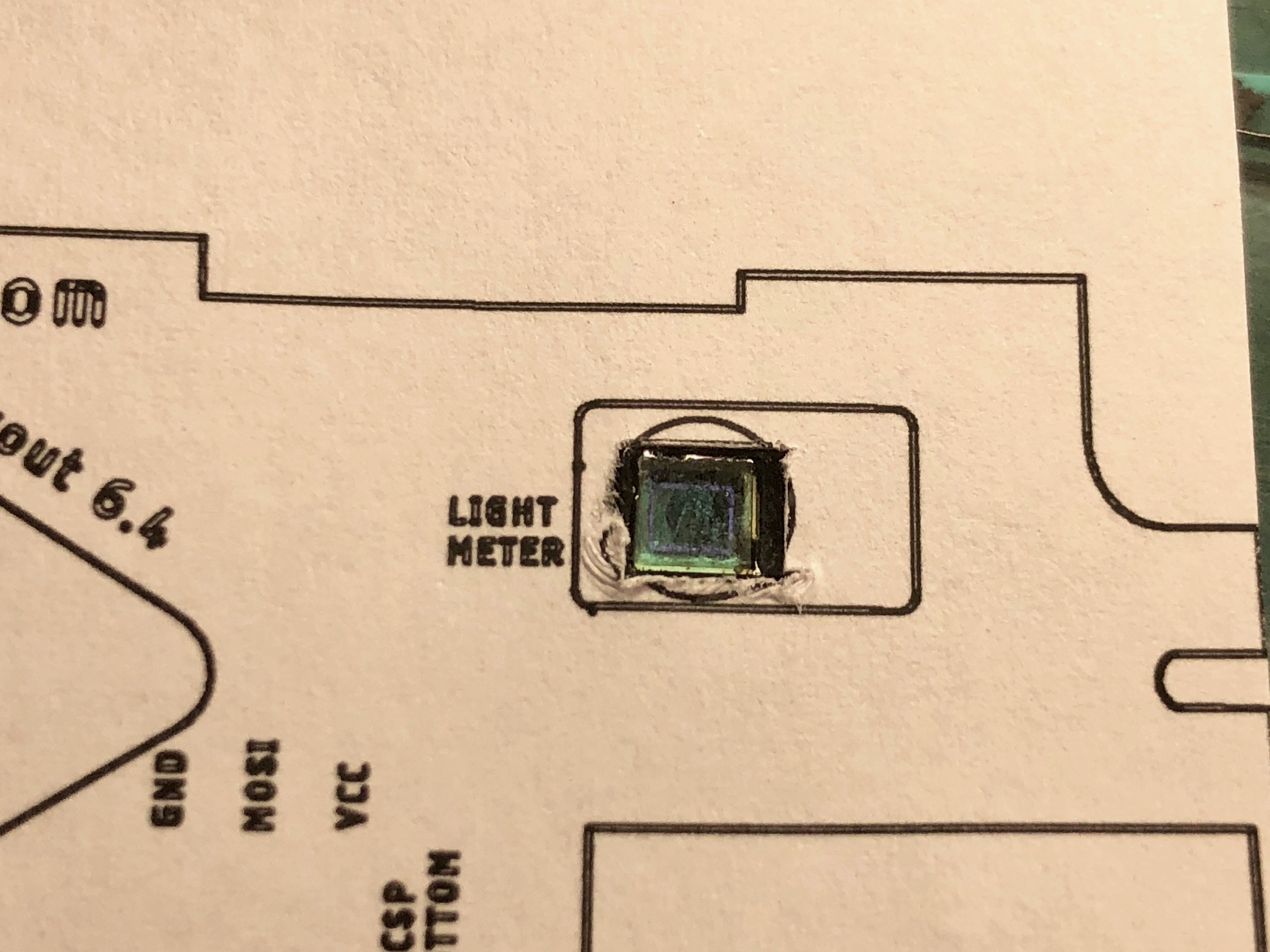

The template on top of the original.

Fire image

Close-up of the original photodiode!

Fire image

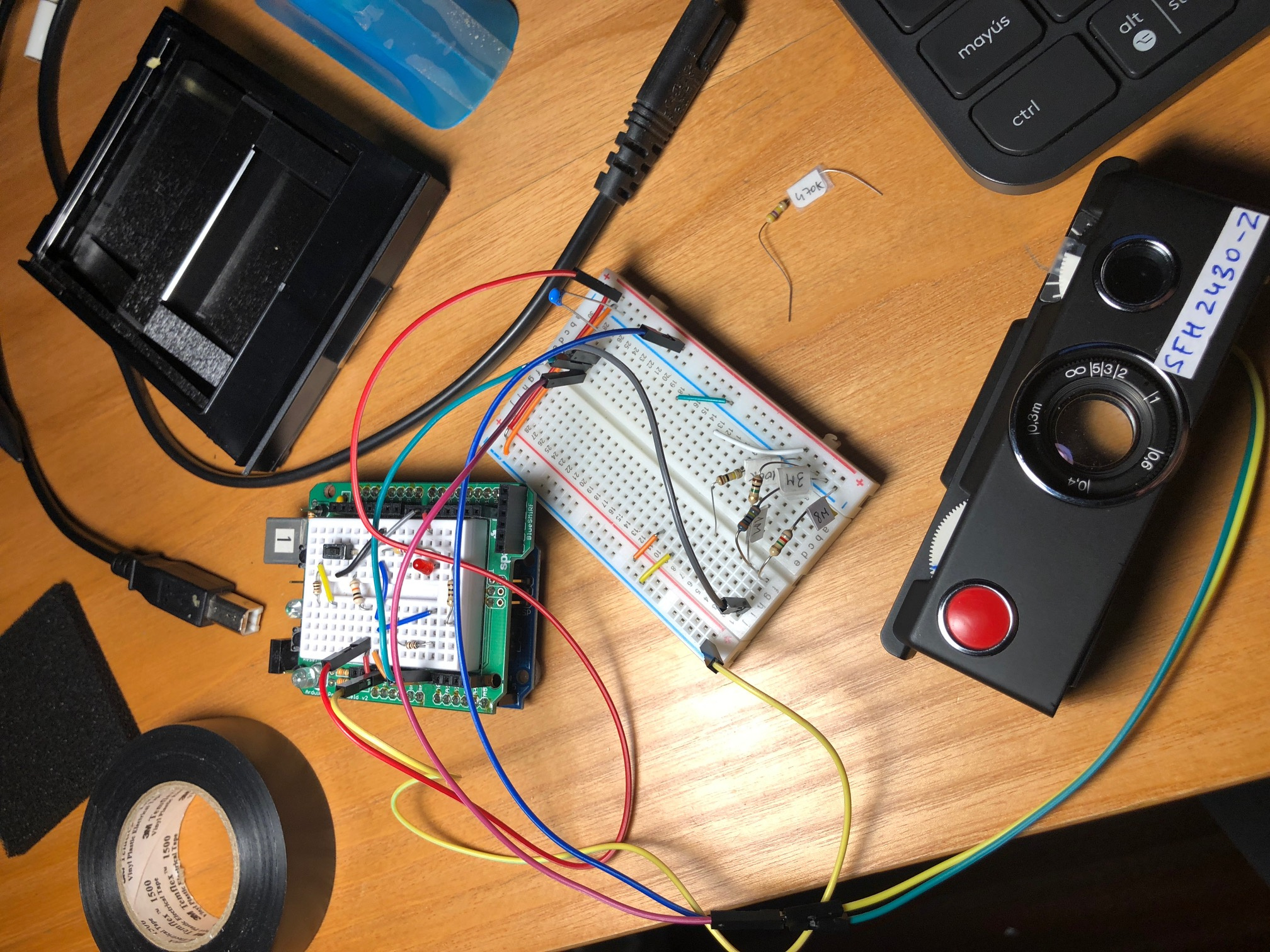

Detail of the test jig before mounting on the camera. The PCB with the SFH2430 is placed in the front of a camera so the test take all the camera hardware when meassuring the light. As you can see in the graphic below, there is a big difference!

First I started with a Sekonic photography light meter,

Fire image

But soon realized that I needed a “professional”, so to speak, light meter that gave me a value in lux, fortunately I had one that was gifted to me from my friend Leo. I guess you can do the conversion from EV to lux anyway.

So now I have started to do some “systematic” tests.

The dotted lines are the meassurements “outside” the camera, the thick lines are the readings from the camera, and the thin lines are “projections”. I made meassurements with different resistors: 1M, 470K, 330K, 100K and 10K. Turns out that depending on the value of the resistor you use, you get sensitivity in low-light or when there is a lot of light, like in sunlight, like EV17 and such.

What I have to do now, is run some test with the other photodiodes, also try to come with a more “stable” aproach, so the meassurements are more consistent when in-camera (the only ones important for my research). Maybe by setting up a white light box and the camera inside… Up until now I was just moving a lamp on top of both the light meter and the camera assembly. Not very scientific, singularly at close distances there is a parallax problem. I think that readings in camera should be as “lineal” and nice as the ones outside of camera… will keep you posted.

So, what does this all mean? first of all I feel confident to design and manufacture a new layout of the PCB with the light sensor and the resistors, even thought I have not decided which one I will use or the specific value of the resistors. All of them have the same form factor and package (and also sensor area, very, very close to the original).

I feel also happy, that I have “connected” (in a way) with the original electronics that I admire.

This also means that I have a few “only-manual” PCBs here (Pathfinder and Lens and Bellows), so I decided to give away one to a lucky person. I will make a random draw among the website subscribers in november. All you have to do is comment this post (here in the website, not in the FB group) indicating why you feel you can use the kit NOW, the model camera you have (has to be a non-sonar Alpha or Alpha model 2), your soldering skills and, of course your express willingness to sacrifice your precious camera! (Bear in mind that I might not be able to give you support on the build, that you are on your own). Also the kit if your the exclusive use of the winner and cannot be sold.

This will also give me assurances that at least someone reads my posts! Also if you subscribe you will be able to participate in surveys I might do in the future to shape the project.

I will also be sending a few of the extra boards to people that I wish they test the system, or that have asked me for it. I have already sent a few kits with more or less luck, to Julien at Brooklyn Film Cameras, Matt Widmann of 2ndShotSX70 service, Kendar Chen of Rezivot and of course to Marco from AnalogThings. And of course, one of the first kits I sent was to Supersense… never heard again from them. I guess they are busy bringing back packfilm.

If you are interested in reviewing the openSX70 camera/project as it is now, you think you can help the project expand and propagate, please contact me opensx70 at openSX70 dot com and we can arrange something. Please all keep in mind that at this moment in time the project is almost a one man orchestra, and that I have limited resources. Also no product is on sale at this moment, so if you would like to purchase one please be patient.
